Measuring Guide for GearHaul Products

Measuring for SawHaul Installation

Proper measurements ensure a secure and efficient installation of your SawHaul. Follow these guidelines to determine compatibility and prepare for mounting.

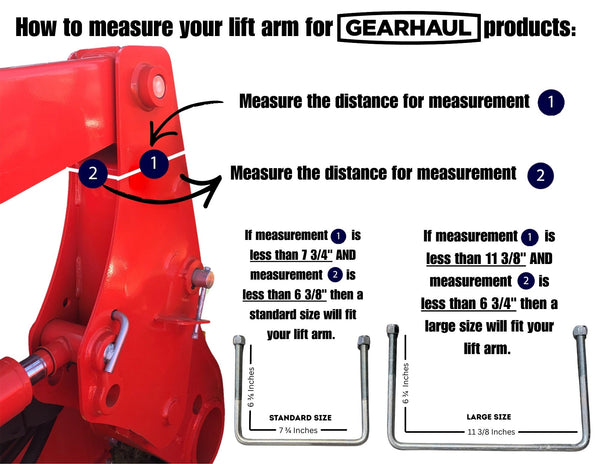

Lift Arm Depth Considerations
What to Do for Deeper Lift Arms:
If your lift arm is too deep for a U-Bolt fit, you’ll need to modify the installation slightly.
Solution: Order a second Flat Bar and source longer bolts to achieve the correct depth.
How It Works: Mount the second Flat Bar behind the lift arm, allowing the SawHaul to be securely attached.

Measuring for ROPS (Roll-Over Protective Structures)

To ensure a proper fit for GearHaul products that mount on ROPS, precise measurement is essential.

Need Help?

We've seen it all and are happy to help if you run into a snag when installing your new SawHaul. Drop us a line to let us know which equipment you are installing it on.
